2005 model under rear seat pics

Hello everyone I'm Gary, new on here but been riding blades for a long time. I wonder if anyone can post some pics of the rear seat lock mechanism if you have a 2005-10 model. I have taken it all off to fit the original end can to get through my spanish MOT and am having problems putting it all back together again. Close up with good light would be awesome. Thanks in advance

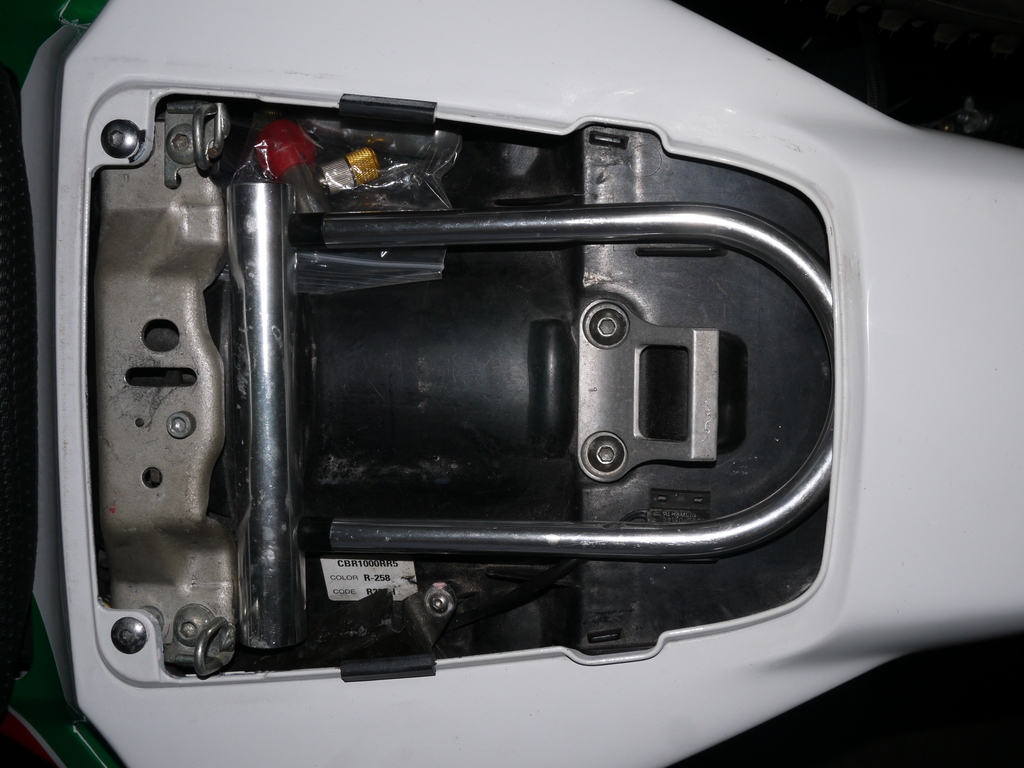

I don't have the bike any more, but here's a pic I have.



Perfect thanks very much i appreciate your time
