Swingarm question

Discussion in 'General 1000RR Discussion' started by FirebladeRR, Jan 21, 2015.

Page 1 of 2
  1. FirebladeRR

    FirebladeRR Active Member

    Joined:
    Apr 30, 2014
    Messages:
    655
    Likes Received:
    86
    Hey lads. Wondering if someone with the 06-07 blade could do me a favour and take a a few measurements from their bike. My understanding after a lot of searching is that the swingarm from 04-05 to 06-07 is not 'identical' as most think. They are very similar and yes the colour was changed but I believe the area where the chain adjusting blocks is different as well. On the 06-07, if my research is correct, the slot is longer to allow for more chain adjustment. Could someone take a few measurements (length, width and height) of this area please so I can compare with my 05. Doing this to make sure there won't be any problems if I order the lightech chain adjusters which are only listed for the 06-07 bikes. If you could also measure the width of the swingarm arm at the end as the lightechs have a backing plate to hold them in and want to make sure this slides in as well. Cheers. RR image.jpg

    #1 FirebladeRR, Jan 21, 2015
  2. FirebladeRR

    FirebladeRR Active Member

    Joined:
    Apr 30, 2014
    Messages:
    655
    Likes Received:
    86
    Anyone?

    #2 FirebladeRR, Jan 22, 2015
  3. Gilesy

    Gilesy Elite Member

    Joined:
    Aug 31, 2013
    Messages:
    2,081
    Likes Received:
    1,181
    ill measure it for you tonight..

    #3 Gilesy, Jan 22, 2015
  4. Blackness

    Blackness Active Member

    Joined:
    Jan 28, 2014
    Messages:
    1,528
    Likes Received:
    904

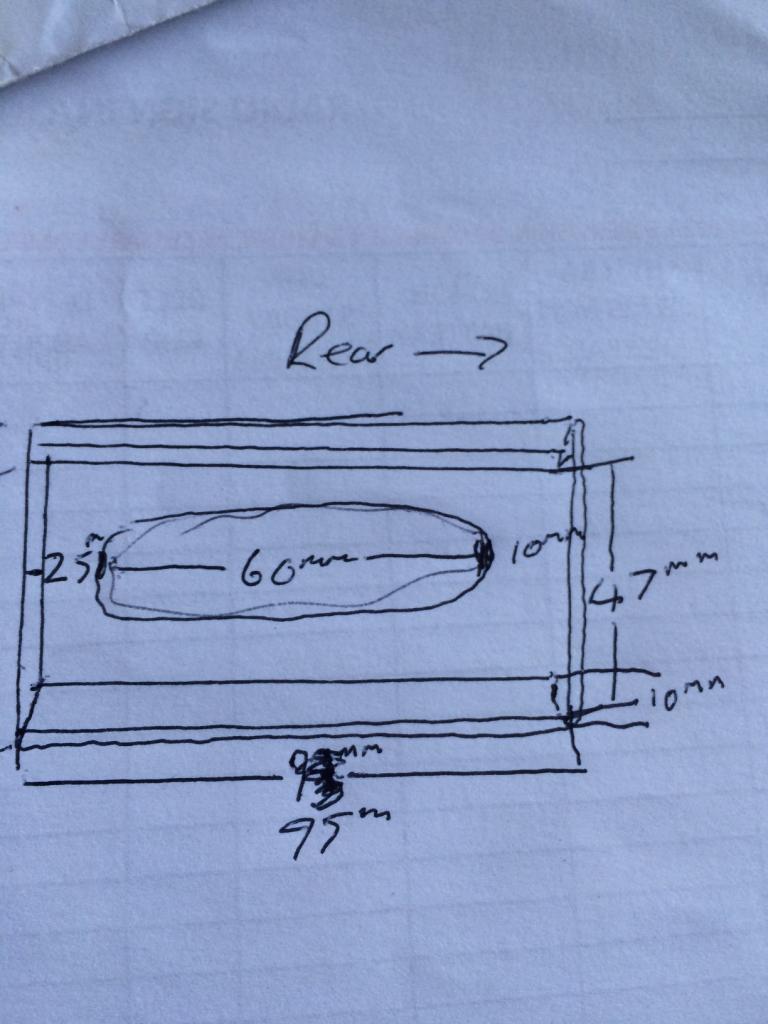

    Try this dude.. Measured from my RR6. [​IMG]

    #4 Blackness, Jan 22, 2015
    • Like Like x 2
  5. FirebladeRR

    FirebladeRR Active Member

    Joined:
    Apr 30, 2014
    Messages:
    655
    Likes Received:
    86
    Awesome dude. Will measure soon as I get home! Any chance you got a measurement of the 'thickness' of the arm?! Like if you took a cross section of it? I hope I'm being clear. ........ As in if you are looking at the bike from the rear, the thickness of one of the swingarm sides....

    #5 FirebladeRR, Jan 22, 2015
  6. Blackness

    Blackness Active Member

    Joined:
    Jan 28, 2014
    Messages:
    1,528
    Likes Received:
    904
    If i get your drift, its 45mm mate..

    #6 Blackness, Jan 22, 2015
  7. FirebladeRR

    FirebladeRR Active Member

    Joined:
    Apr 30, 2014
    Messages:
    655
    Likes Received:
    86
    Mmmmm don't think we are on the same page. I remember mine was roughly 18~19mm. I mean the very back of the arm Tried to take a picture but the lighting is horrendous hahaha image.jpg

    Also does the 06-07 chain adjusting slot taper like this

    #7 FirebladeRR, Jan 22, 2015
  8. FirebladeRR

    FirebladeRR Active Member

    Joined:
    Apr 30, 2014
    Messages:
    655
    Likes Received:
    86
    Anyone with an 04-05 blade who fitted lightech chain adjusters feel free to add your 0.02

    #8 FirebladeRR, Jan 22, 2015
  9. Blackness

    Blackness Active Member

    Joined:
    Jan 28, 2014
    Messages:
    1,528
    Likes Received:
    904
    Yeah, that bit is 19mm ! Don't know how its measuring up your end but they look the same to me..

    #9 Blackness, Jan 22, 2015
  10. FirebladeRR

    FirebladeRR Active Member

    Joined:
    Apr 30, 2014
    Messages:
    655
    Likes Received:
    86
    Mmmmmm ok I'll wait and see what gilesy posts later.

    #10 FirebladeRR, Jan 22, 2015
  11. Blackness

    Blackness Active Member

    Joined:
    Jan 28, 2014
    Messages:
    1,528
    Likes Received:
    904
    Bet he posts the same dude...

    #11 Blackness, Jan 22, 2015
  12. Gilesy

    Gilesy Elite Member

    Joined:
    Aug 31, 2013
    Messages:
    2,081
    Likes Received:
    1,181
    Just home.. the 06 swing arm doesnt taper at the swing arm in the picture.. just straight cut. I'll nip out in 5, I have gilles chain adjusters on mine

    #12 Gilesy, Jan 22, 2015
    • Like Like x 1
  13. FirebladeRR

    FirebladeRR Active Member

    Joined:
    Apr 30, 2014
    Messages:
    655
    Likes Received:
    86
    Oh does it not?! Mmmmm wonder how safe it would be then to fit the lightechs? Yeah was thinking of Gilles but they don't do red :p think red will be savage with the swing arm after I powdercoat it black.

    #13 FirebladeRR, Jan 22, 2015
  14. Blackness

    Blackness Active Member

    Joined:
    Jan 28, 2014
    Messages:
    1,528
    Likes Received:
    904
    Bling bling... Going on mine too tomorrow :D lol

    #14 Blackness, Jan 22, 2015
    Last edited: Jan 22, 2015
    • Like Like x 1
  15. FirebladeRR

    FirebladeRR Active Member

    Joined:
    Apr 30, 2014
    Messages:
    655
    Likes Received:
    86
    Lightech or Gilles?

    #15 FirebladeRR, Jan 22, 2015
  16. Blackness

    Blackness Active Member

    Joined:
    Jan 28, 2014
    Messages:
    1,528
    Likes Received:
    904
    Gilles everything !

    #16 Blackness, Jan 22, 2015
  17. FirebladeRR

    FirebladeRR Active Member

    Joined:
    Apr 30, 2014
    Messages:
    655
    Likes Received:
    86
    Yeah just saw your thread. Damn I'm jealous. Have my heart set on lightechs though. Not gonna lie. Hence I'm just tryna make it work haha

    #17 FirebladeRR, Jan 22, 2015
  18. Gilesy

    Gilesy Elite Member

    Joined:
    Aug 31, 2013
    Messages:
    2,081
    Likes Received:
    1,181
    couple of pics.. hope this helps:


    IMG_5093 copy.jpg


    #18 Gilesy, Jan 24, 2015
    • Like Like x 2
  19. Blackness

    Blackness Active Member

    Joined:
    Jan 28, 2014
    Messages:
    1,528
    Likes Received:
    904
    Nice Gilesy, very nice !! Got the same adjusters and axel nut for mine as you know... Is that a Ti washer i see there behind the nut ? Was thinking about this as no washer has been supplied !

    #19 Blackness, Jan 24, 2015
  20. Gilesy

    Gilesy Elite Member

    Joined:
    Aug 31, 2013
    Messages:
    2,081
    Likes Received:
    1,181
    no the nut has an integral washer.. all one piece :)

    #20 Gilesy, Jan 24, 2015
